When shopping for a smart body fat scale, you may notice two common designs: a platform you simply step onto, and a scale with a handle you hold during measurement.

These designs typically use four and eight electrodes, respectively. Both can estimate body composition, but their electrode layouts create different measurement paths—and can provide different levels of detail.

Here’s what that means when choosing a scale for your routine.

What Do the Electrodes Do?

Electrodes are the conductive contact areas that connect your body to the scale’s bioelectrical impedance analysis, or BIA, system.

During a measurement, a small electrical signal passes through the body. The scale measures impedance and uses it alongside information such as height, age, and weight to estimate body composition.

Weight is measured separately by the scale’s weighing sensors. Body fat and other composition values are estimates calculated from the BIA measurement.

For more background, read our guide to how scales measure body fat.

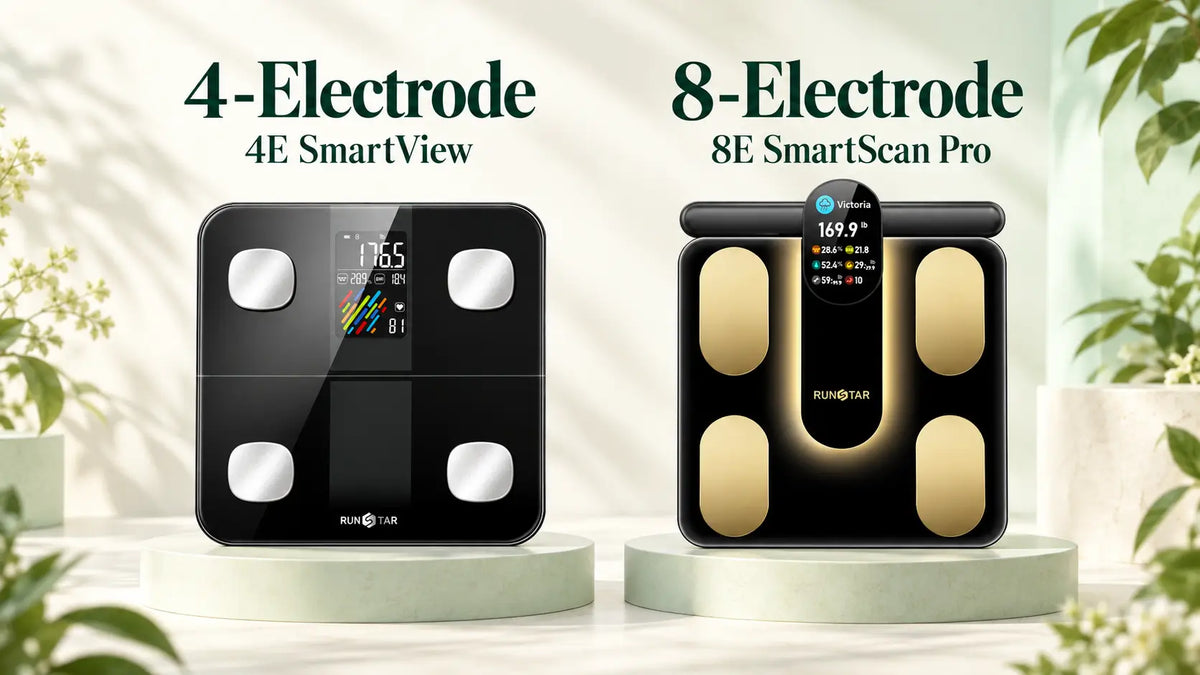

How Are 4-Electrode and 8-Electrode Scales Different?

The main difference is where your body contacts the electrodes.

A typical 4-electrode scale uses four contact areas beneath your feet. Its foot-to-foot measurement path primarily samples the lower body, while its algorithms use that information to estimate overall body composition.

An 8-electrode scale adds four hand contacts to the four foot contacts. This allows additional measurement paths involving the upper and lower body. Models designed for segmental analysis can use these measurements to estimate body composition in individual regions.

A 4-electrode scale can still provide whole-body estimates. The difference lies in the measurements used to produce those estimates, rather than whether the app displays a whole-body result.

What Does the Handle Add?

On an 8-electrode scale, the handle provides electrical contact with your hands, extending measurement beyond the foot-to-foot path.

On supported models, this enables segmental body composition analysis: separate estimates for the left arm, right arm, trunk, left leg, and right leg.

For someone interested in how estimated muscle or fat distribution differs across body regions, that additional detail can be useful context alongside overall measurements.

However, electrode count and measurement frequency are separate features. Eight electrodes do not automatically mean a scale uses dual-frequency BIA, so check both specifications when comparing products.

Are More Electrodes Always More Accurate?

Additional measurement paths can support a more detailed assessment, but electrode count alone does not establish accuracy.

Results also depend on the device’s algorithms, validation, electrode contact, and measurement conditions. Hydration, recent meals, and exercise can influence BIA estimates on either type of scale.

Whichever design you choose, follow the instructions and measure under similar conditions. Compare trends over time rather than treating every short-term change as a change in body fat or muscle.

Which Type Fits Your Routine?

Choose a 4-electrode scale if you want a straightforward daily routine. A model such as the RunStar 4E SmartView Pro offers body composition tracking in a platform design without a handheld component.

Consider an 8-electrode scale if you want regional body composition insights. The RunStar SmartScan Pro and SmartScan Ultra combine hand and foot electrodes for more detailed tracking.

The right choice depends on the information you want and the routine you will maintain. Start with your goals, then compare the measurements, display, and app features that matter most to you.
